Alusong Cladding- PVDF Supplier

颜色和表面

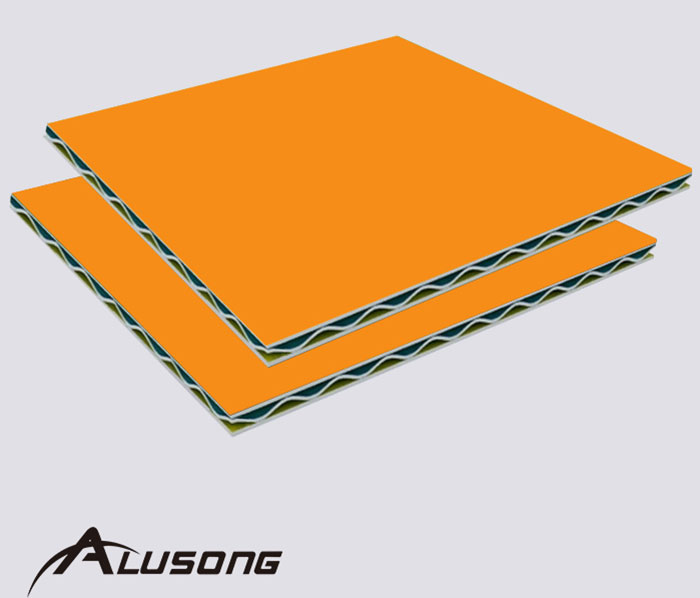

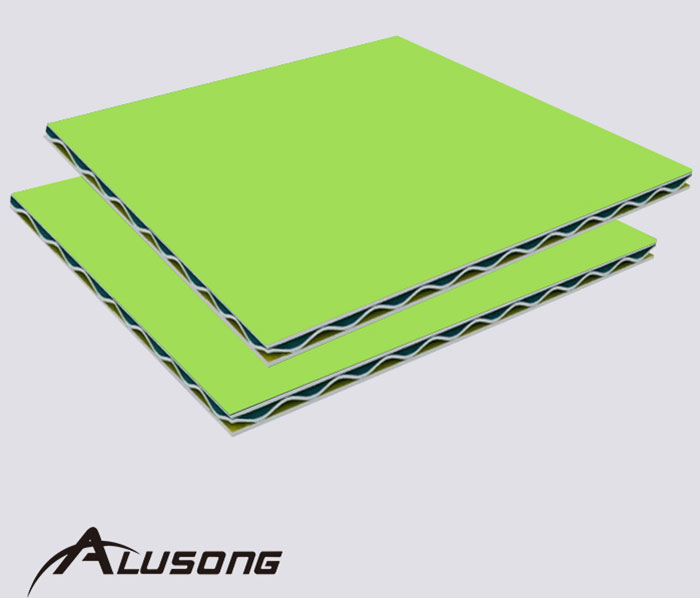

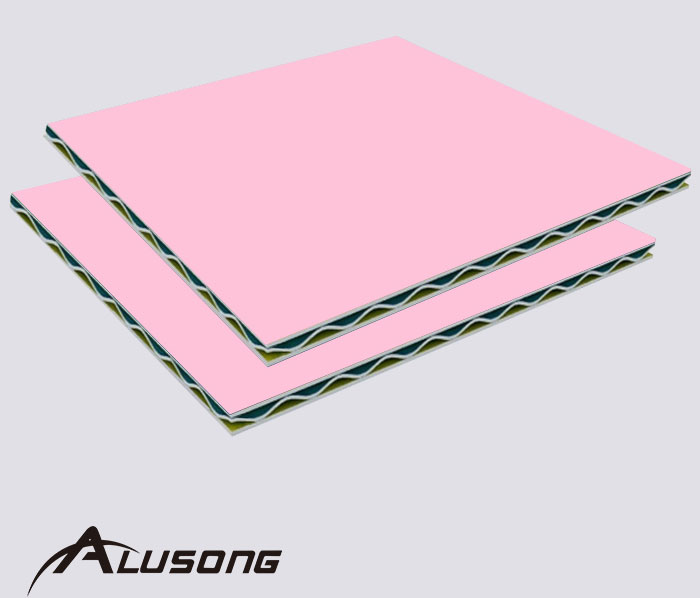

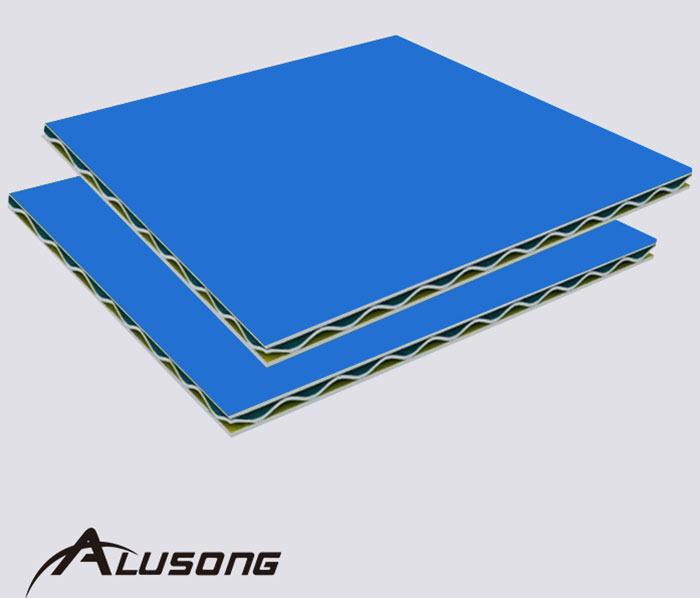

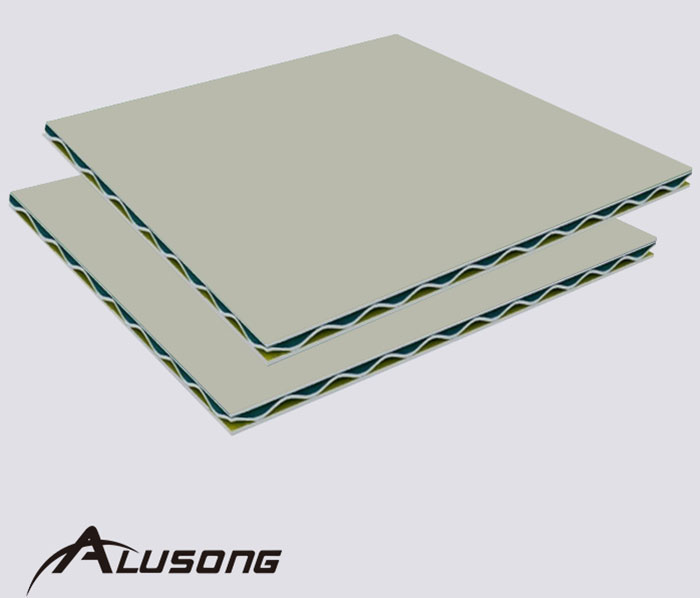

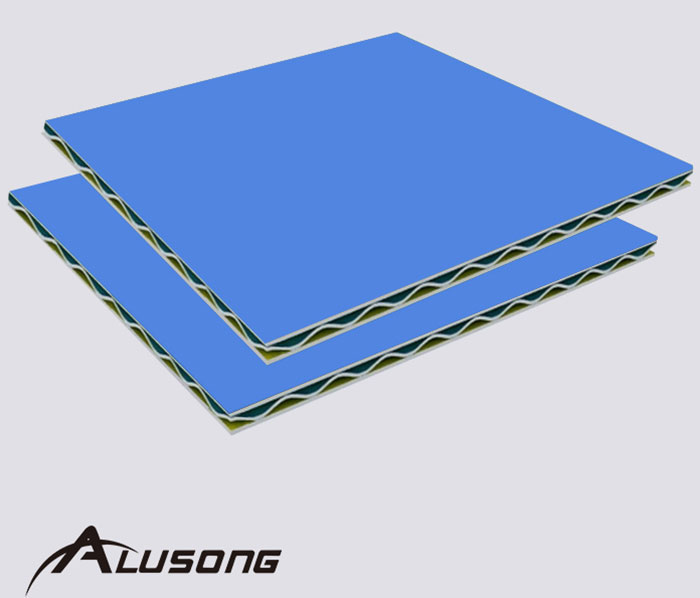

ALUSONG Corrugated panel uses PVDF coating system for exterior facades, using quality paint and aluminum coil. Warranty can be 15-20 years for exterior use. Metallic & solid color,NANO, wood, stone, brushed,spectra, unlimited color are available.

Color Chocolate Brown

产品范围

Aluminum alloy	AA3003 AA5005
Aluminum skin	0.40mm,0.45mm,0.5mm, 0.7mm,1mm
Panel thickness	4mm,5mm
Panel width	1220mm,1250mm,1500mm
Panel length	2440mm,3050mm,4050mm
Surface treatment	PVDF
Colors	70 colors, RAL & PANTONE colors upon request
Customers size	accepted
Glossy	20%-80%

Panel width: ±2mm Panel length:±3mm

Panel thickness: ±0.2mm Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.01mm

产品属性

1. Unlimited colors; warranty up to 15 years

2. Light weight caldding material on the market

3. High performance with low cost

4. Non-combustibility, A2 FR

5. Recycled environmentally friendly product.

6. Perfect flatness with its special structure

产品应用

1. Exterior curtain wall

2. Interior wall decoration

3. Interior ceiling decoration

4. Back boards for natural stone panel

5. New materials for furniture

Application
Application
Application
Application
Application
Application

技术数据

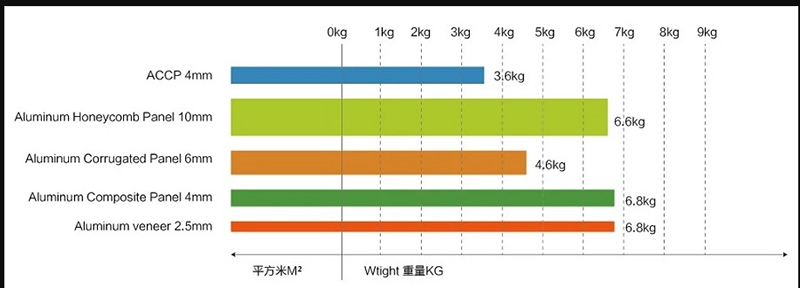

Light weight:

4mm(0.5/0.4) ALUSONG Corrugated panel weight is 3.6kg/m2 which is lighter compare to other material such as Aluminum solid panel etc. , hence could decrease the loading of the building, reduce he construction basement and other cost.

Alusong Corrugated

TestingParty	TestStandard	ALUSONGCorrugated panel	Results &Classification
TUV	BS476 Part 7	4mm	Class 1
	BS476 Part6	4mm	Index 0
	BS476 Part4	4mm	NON-COMBUSTION
SGS	DIN4102 Part 1	4mm	Class A2
SGS	EN13501	4mm	Class A2,s1,d0
Intertek	ASTM E84	4mm	Flame 0Sm.Deve index10
China	GB8624-2012	4mm	Class A2,s1,d0
AU	AS1530.1-1994	4mm	NON-COMBUSTION
AU	AS1530.3-1999	4mm	Ignitability Index 0Spread of Flame Index 0Heat Evolved Index 0Smoke Developed Index 1
